Desalter Pulse Regulation Cabinet
Regulation, protection and interlocking for desalter power
Desalter Pulse Regulation CabinetRegulation, protection and interlocking for desalter power
The control cabinet coordinates high-voltage output regulation, operating-state monitoring, electrical protection, process interlocks and local or remote commands within the desalter power system.
Control logic is developed around the electrostatic desalting duty and its paired high-voltage power source so output can respond to changing crude-treatment conditions.
- Paired systemDesalter high-voltage power
- OperationLocal / remote
- Core functionsRegulation, monitoring, protection, interlocking
- InterfacesConfigured to the project control philosophy
Four capabilities for project configuration
High-voltage output regulation
Paired system: Desalter high-voltage power
Operating-state monitoring
Operation: Local / remote
Protection and process interlocks
Core functions: Regulation, monitoring, protection, interlocking
Local and remote interfaces
Interfaces: Configured to the project control philosophy
Coordinate high-voltage regulation, protection and process interlocks
Control logic is developed around the electrostatic desalting duty and its paired high-voltage power source so output can respond to changing crude-treatment conditions.
Cabinet functions and external signals follow the project control philosophy, including protection, plant control and field interlock interfaces.
Final configuration is confirmed against the electrical duty, installation interfaces, site environment and project documentation.

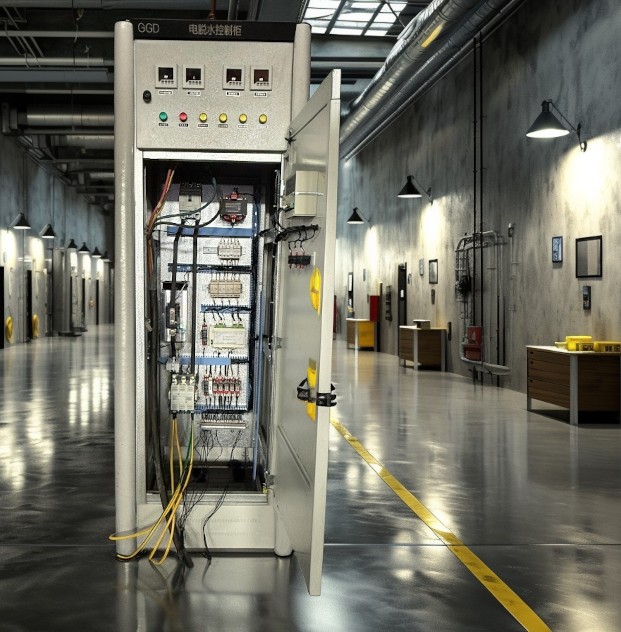

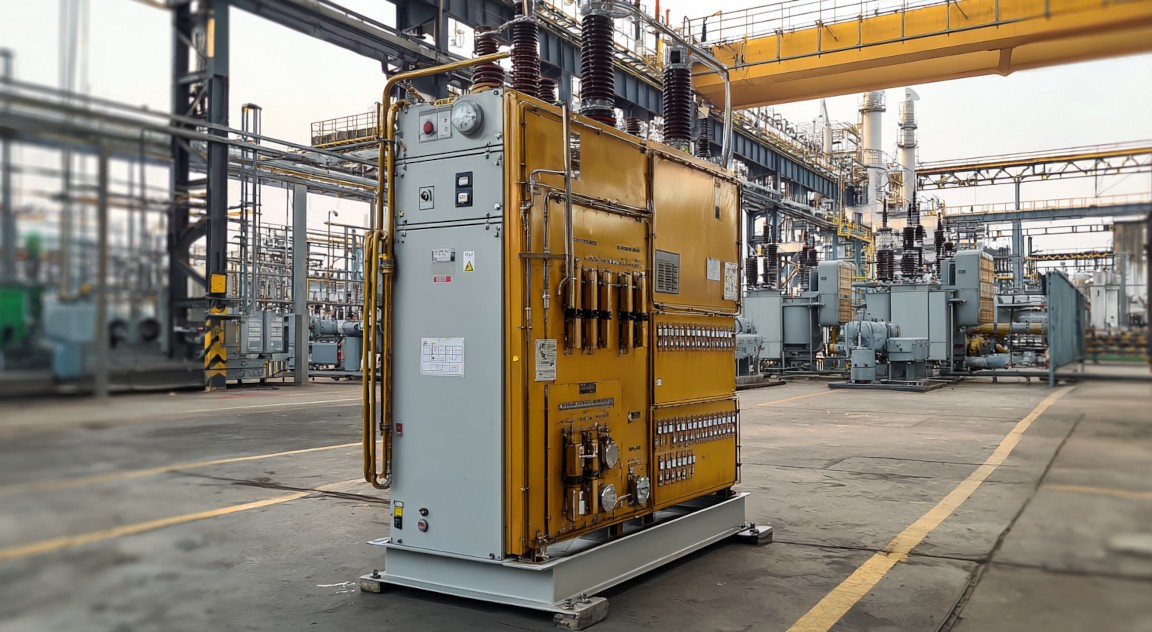

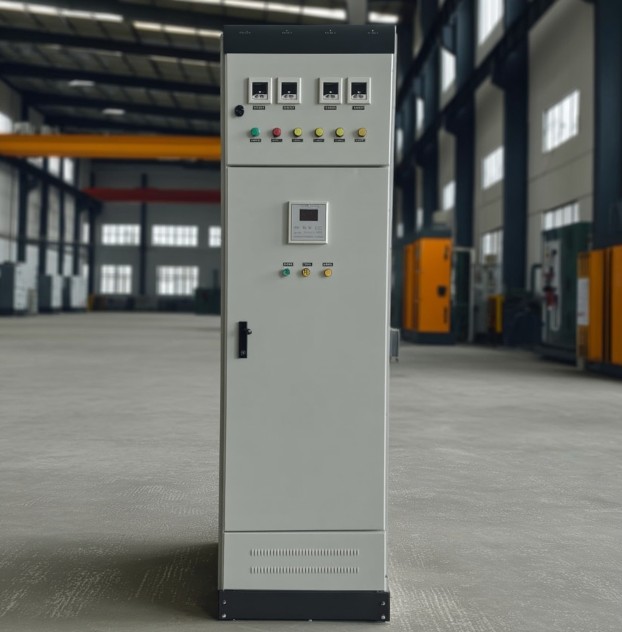

Desalter Pulse Regulation Cabinet engineering views
Configure Desalter Pulse Regulation Cabinet
Available information does not need to be complete. Start with a nameplate, drawing or required electrical ratings, and the remaining project inputs can be identified during review.
