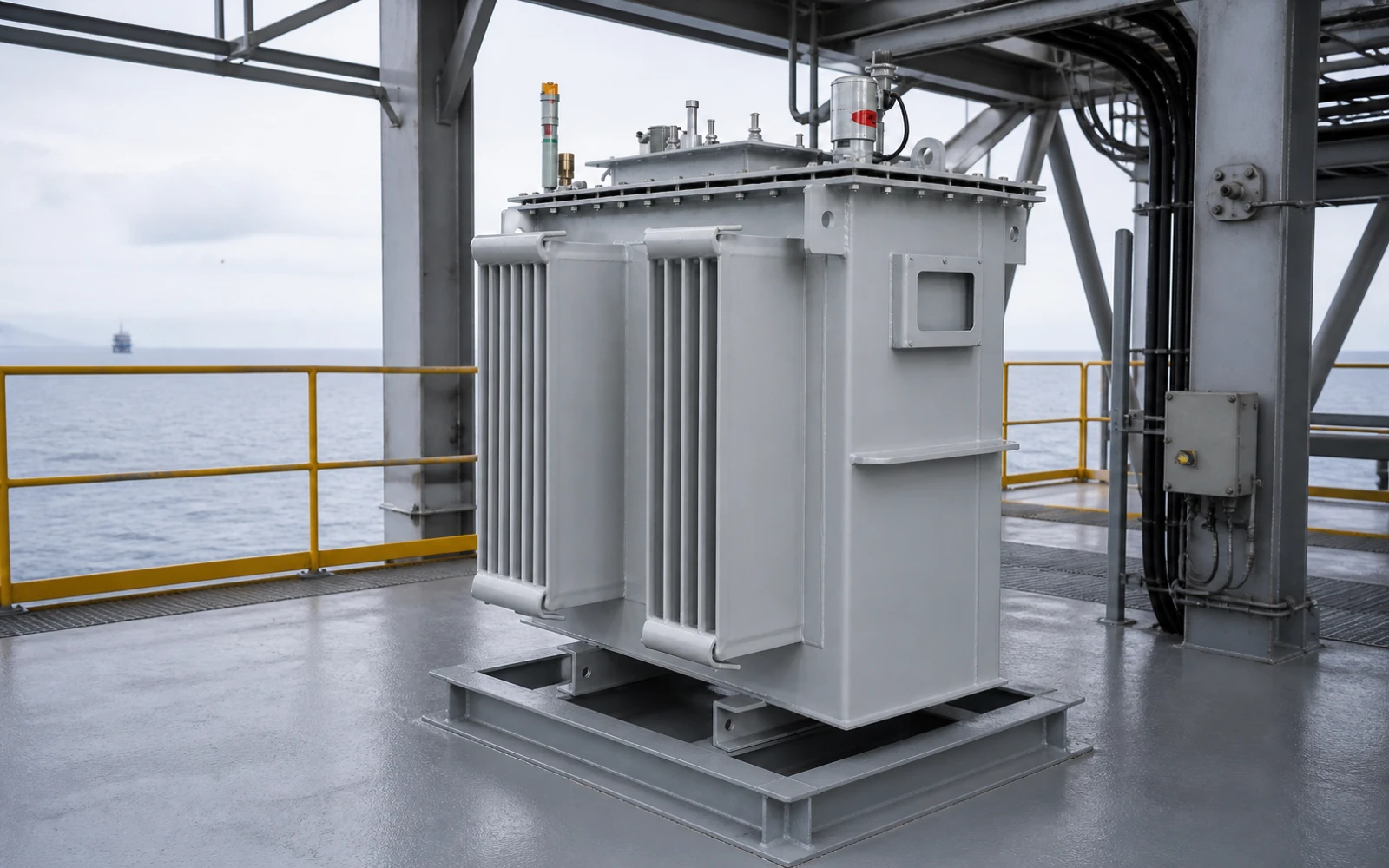

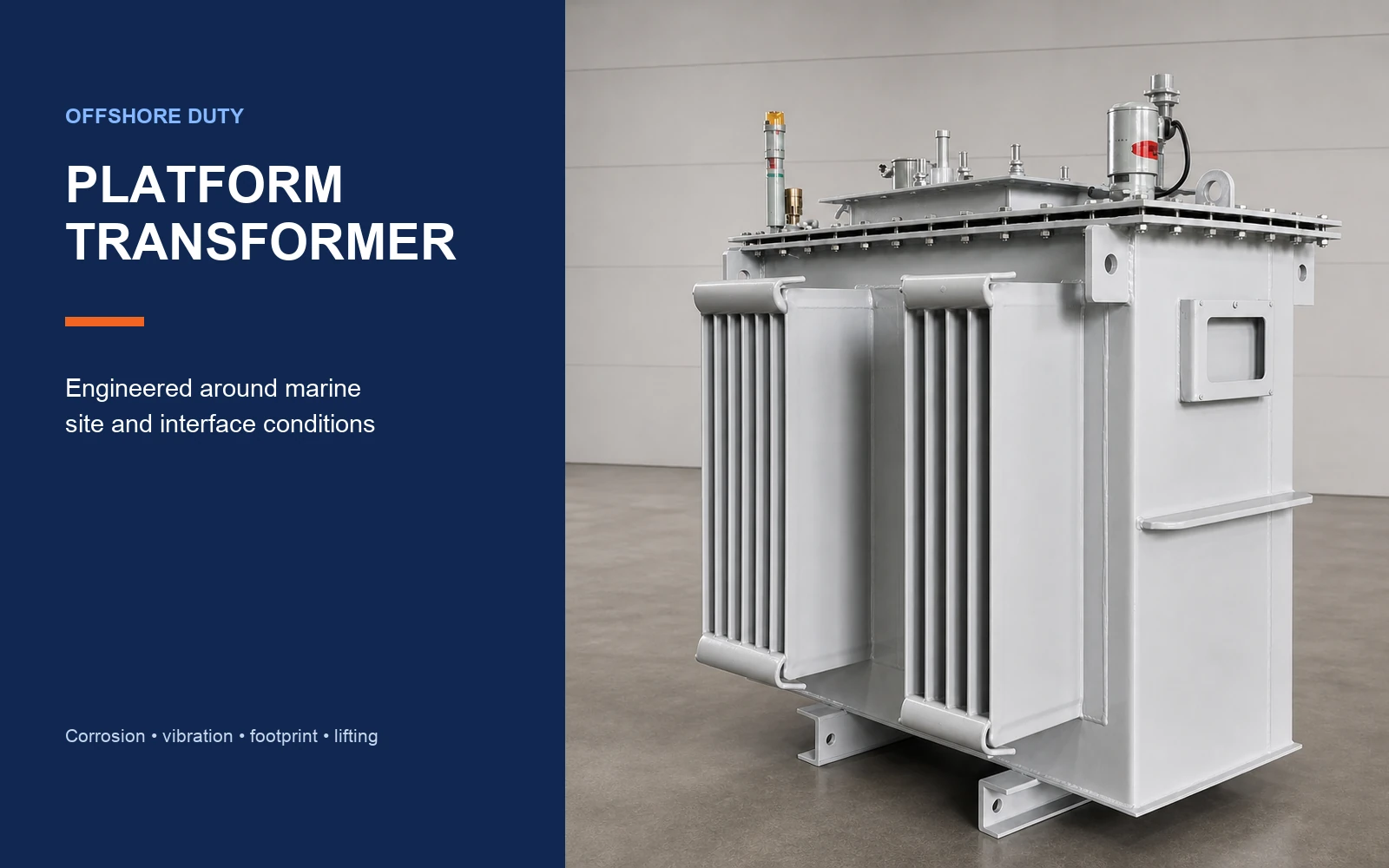

Offshore Drilling Platform Transformer
Power conversion for offshore drilling and variable-frequency loads
Offshore Drilling Platform TransformerPower conversion for offshore drilling and variable-frequency loads
Designed for offshore oil-drilling platforms where variable-frequency drives, non-linear loads, continuous duty, limited equipment space and marine operating conditions must be considered together.
Drilling drives, motors and auxiliary systems place connected demands on waveform, harmonic losses, insulation stress, thermal duty and cooling.
- ApplicationOffshore oil-drilling platform

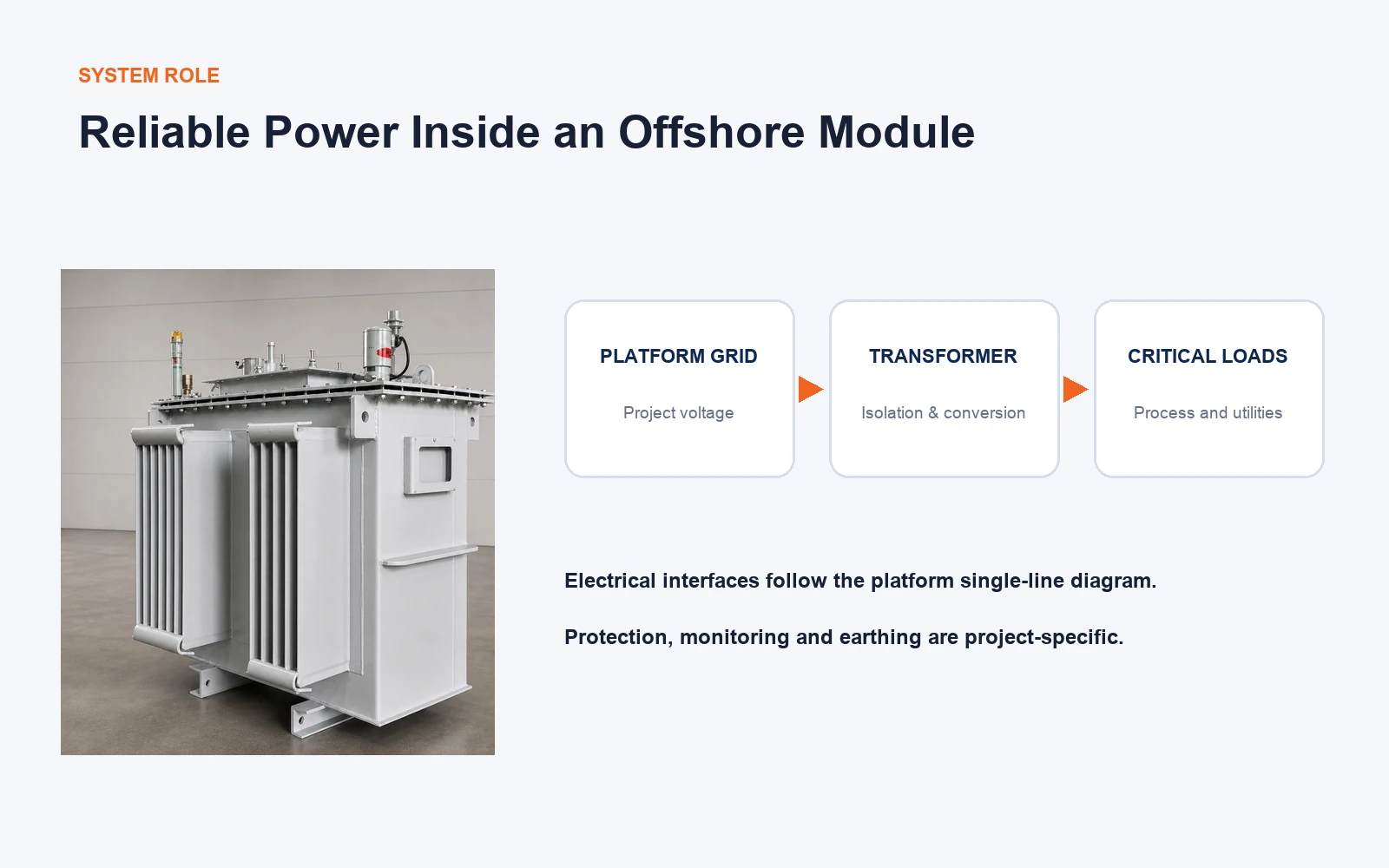

- Power interfacePlatform distribution / VFD output
- Load typeDrilling drives and auxiliary systems
- EnvironmentProject-specific marine conditions
Four capabilities for project configuration
Offshore VFD-load compatibility
Application: Offshore oil-drilling platform
Harmonic and thermal-duty review
Power interface: Platform distribution / VFD output
Adaptation to marine conditions
Load type: Drilling drives and auxiliary systems
Project-specific footprint and interfaces
Environment: Project-specific marine conditions
Match offshore VFD loads and platform installation limits
Drilling drives, motors and auxiliary systems place connected demands on waveform, harmonic losses, insulation stress, thermal duty and cooling.

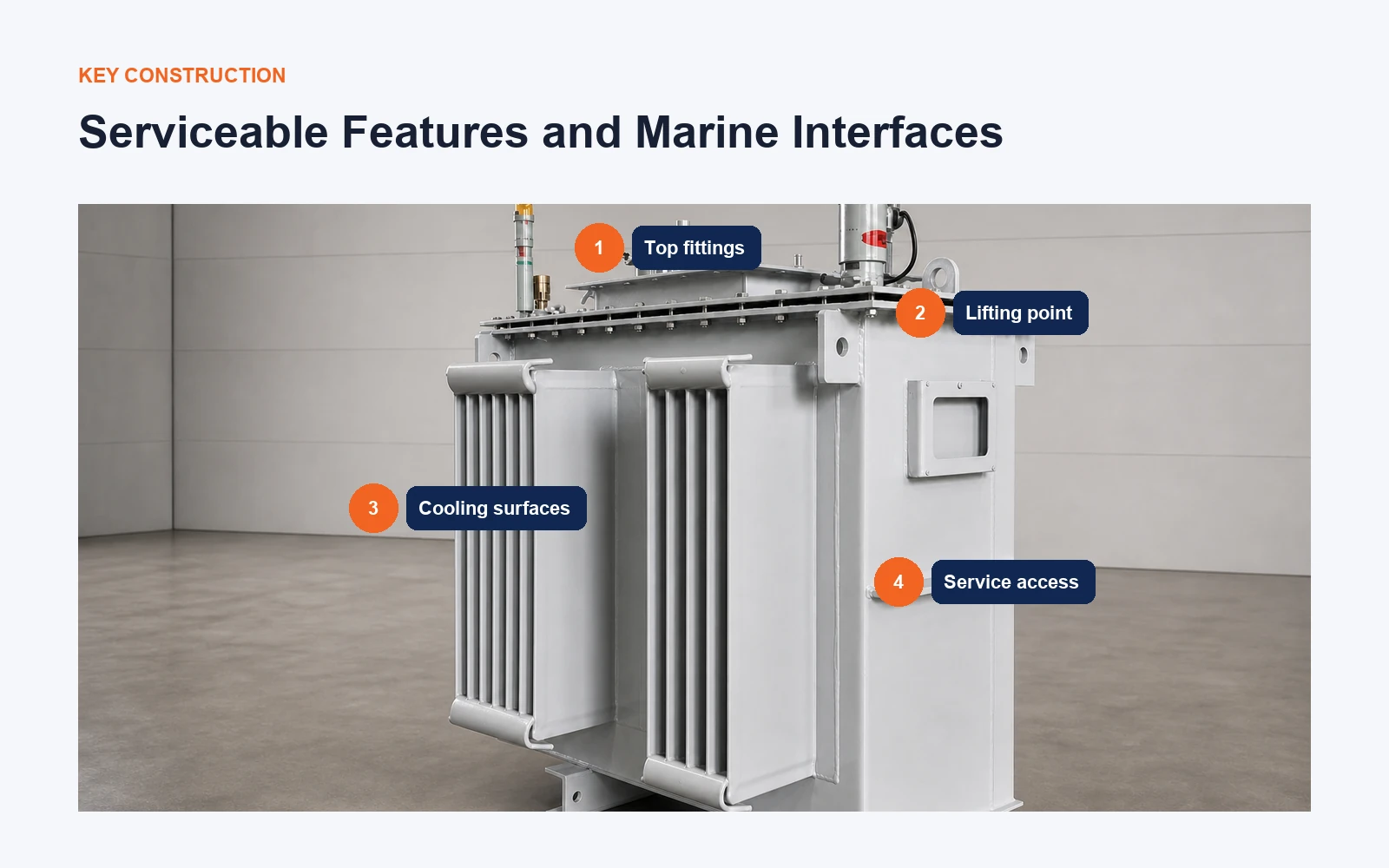

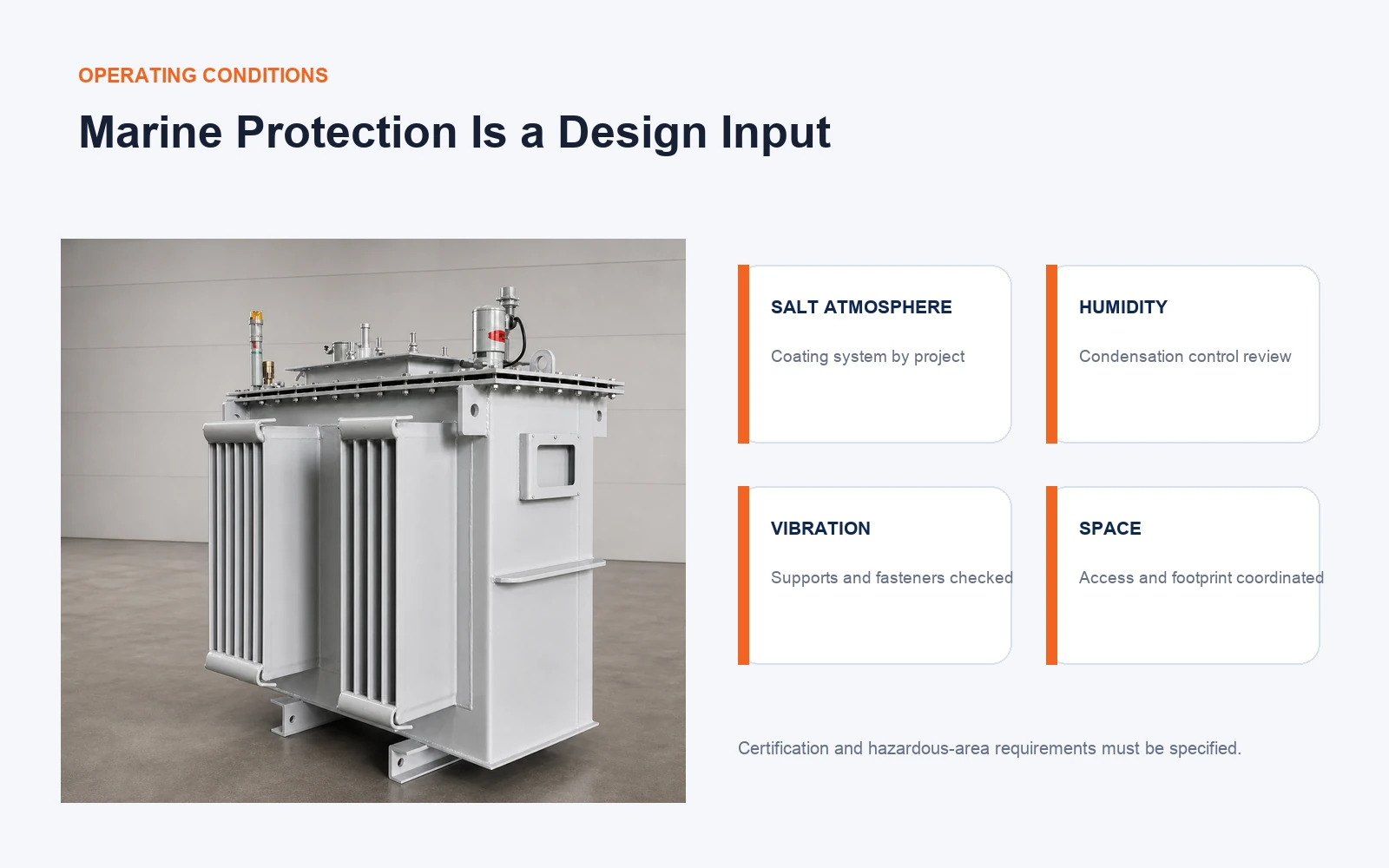

Marine exposure, vibration, footprint, terminal direction and project standards are reviewed together with the required electrical performance.

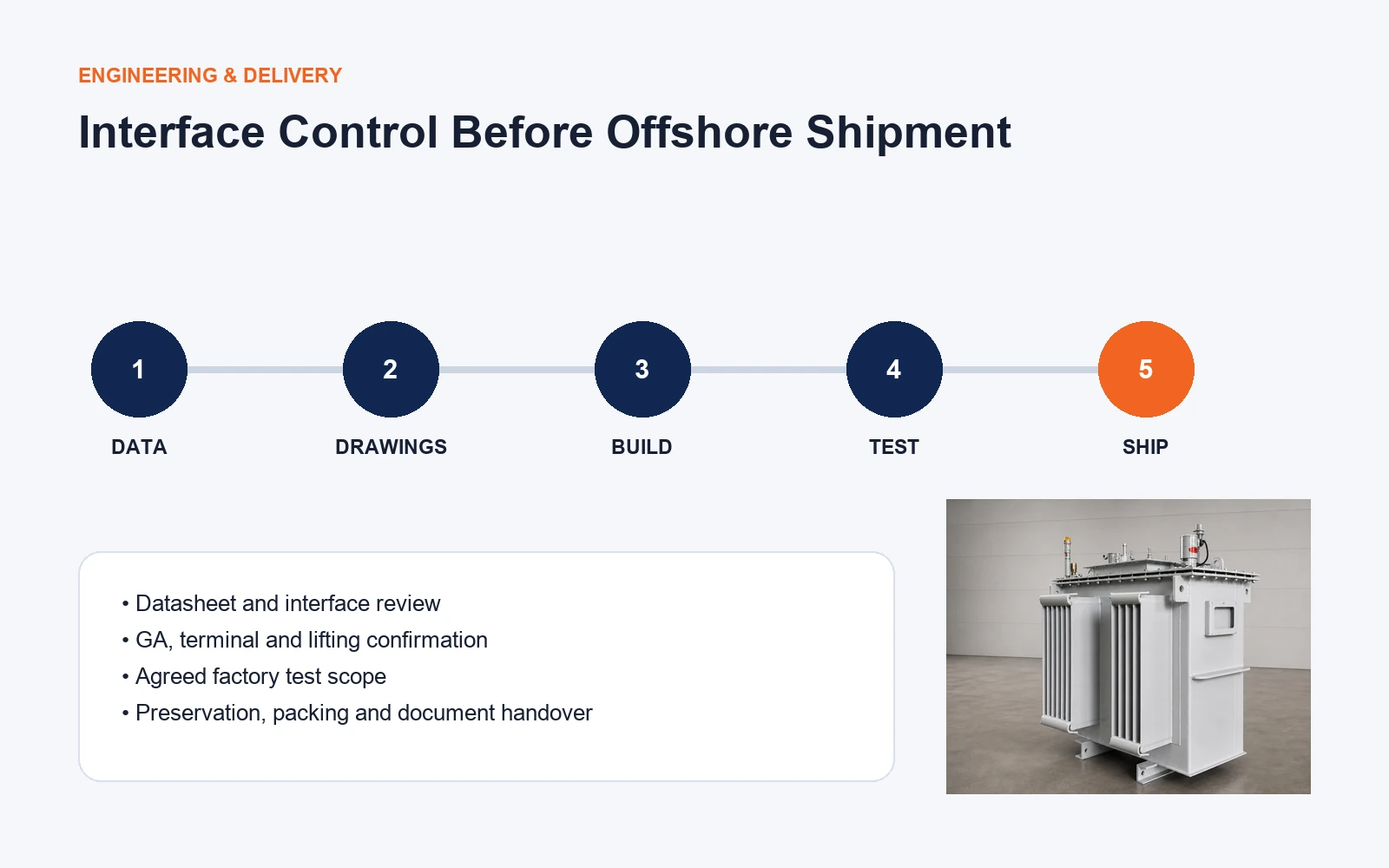

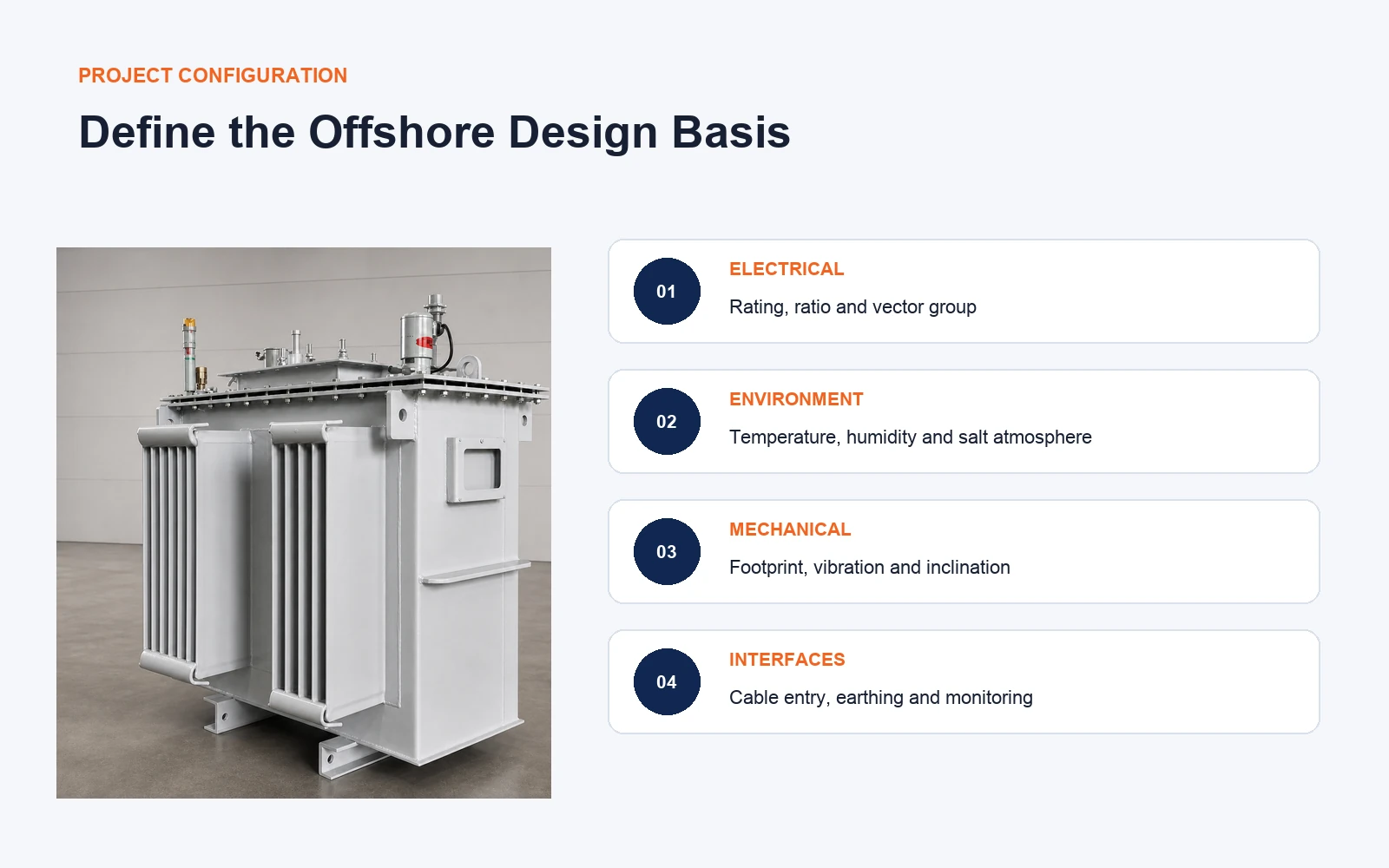

Final configuration is confirmed against the electrical duty, installation interfaces, site environment and project documentation.
Offshore Drilling Platform Transformer engineering views
Configure Offshore Drilling Platform Transformer
Available information does not need to be complete. Start with a nameplate, drawing or required electrical ratings, and the remaining project inputs can be identified during review.
