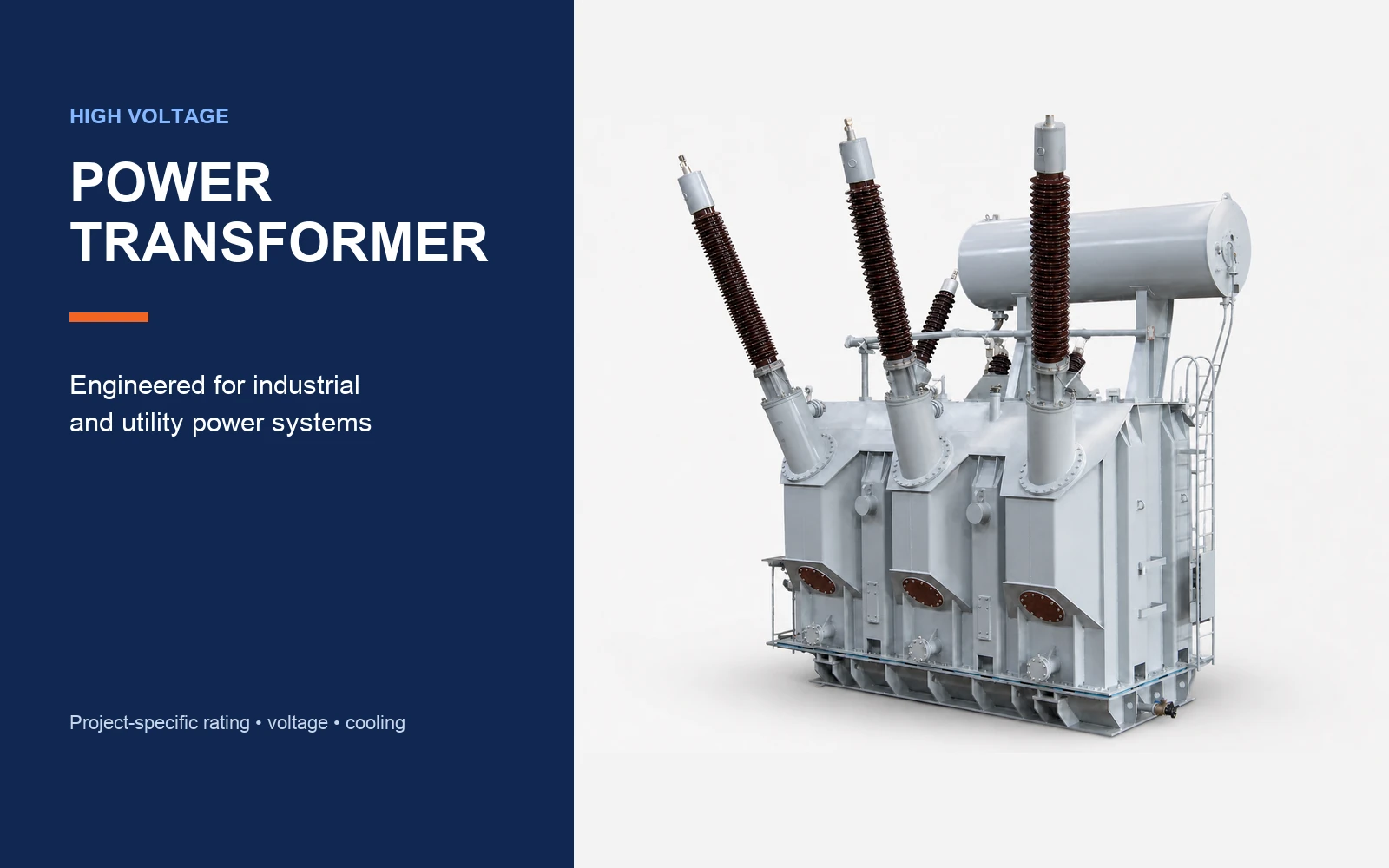

Industrial Power Transformer
Project-configured power conversion for industrial systems
Industrial Power TransformerProject-configured power conversion for industrial systems

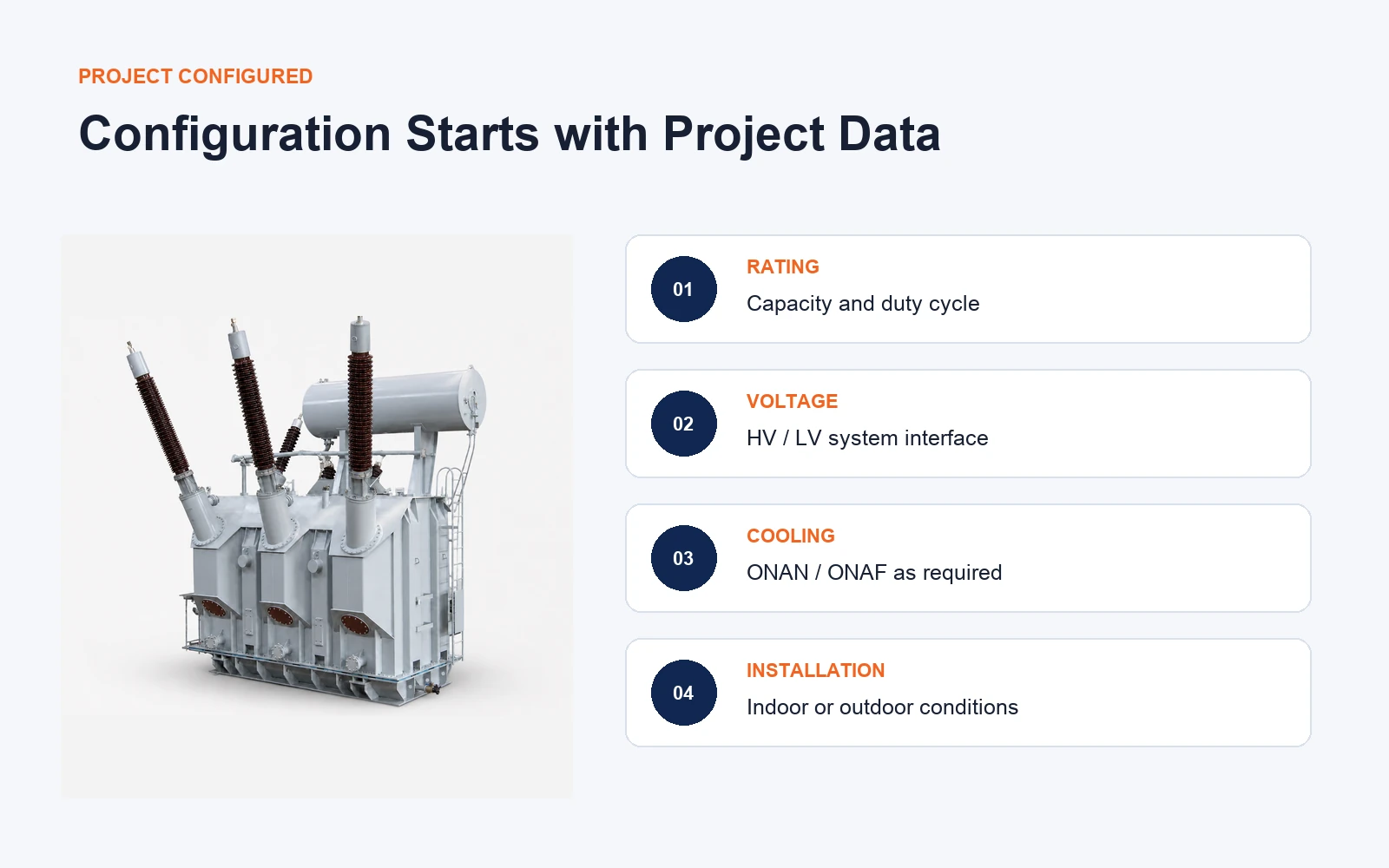

Engineered for plant substations, process units and dedicated industrial loads, this transformer is configured from system voltage, load profile, loss targets, cooling conditions and installation constraints.
Selection begins with the actual plant network and connected duty, including regulation, temperature-rise limits, protection coordination and long-term operating mode.
- Electrical dutyStep-up / step-down
- Design basisSystem voltage and load profile
- CoolingSelected for project conditions
- Project typeNew / replacement / retrofit
Four capabilities for project configuration
Designed around network and load
Electrical duty: Step-up / step-down
Loss and thermal-duty review
Design basis: System voltage and load profile
New-build and replacement support
Cooling: Selected for project conditions
Project-specific installation interfaces
Project type: New / replacement / retrofit

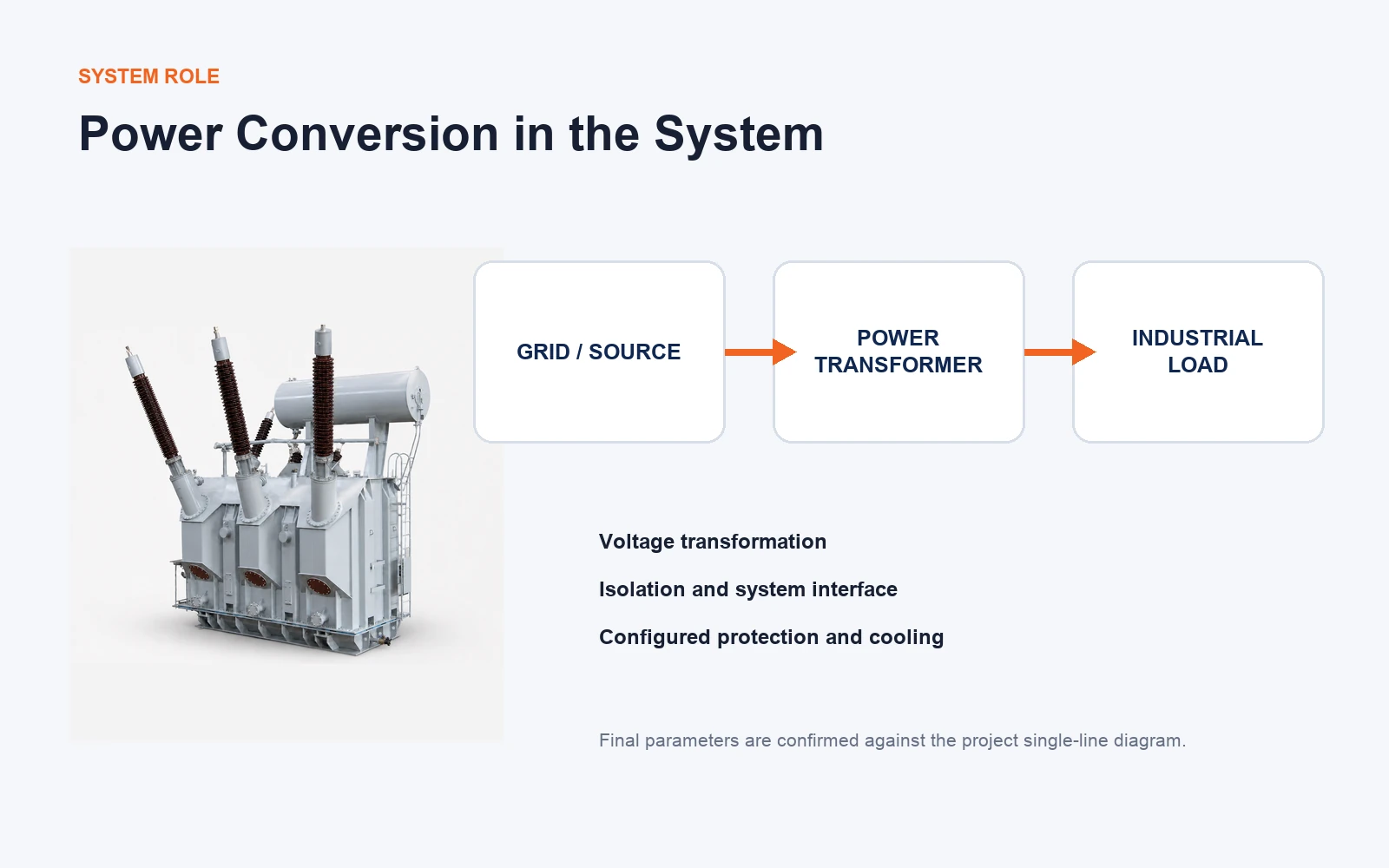

Match the transformer to the plant network and actual load
Selection begins with the actual plant network and connected duty, including regulation, temperature-rise limits, protection coordination and long-term operating mode.

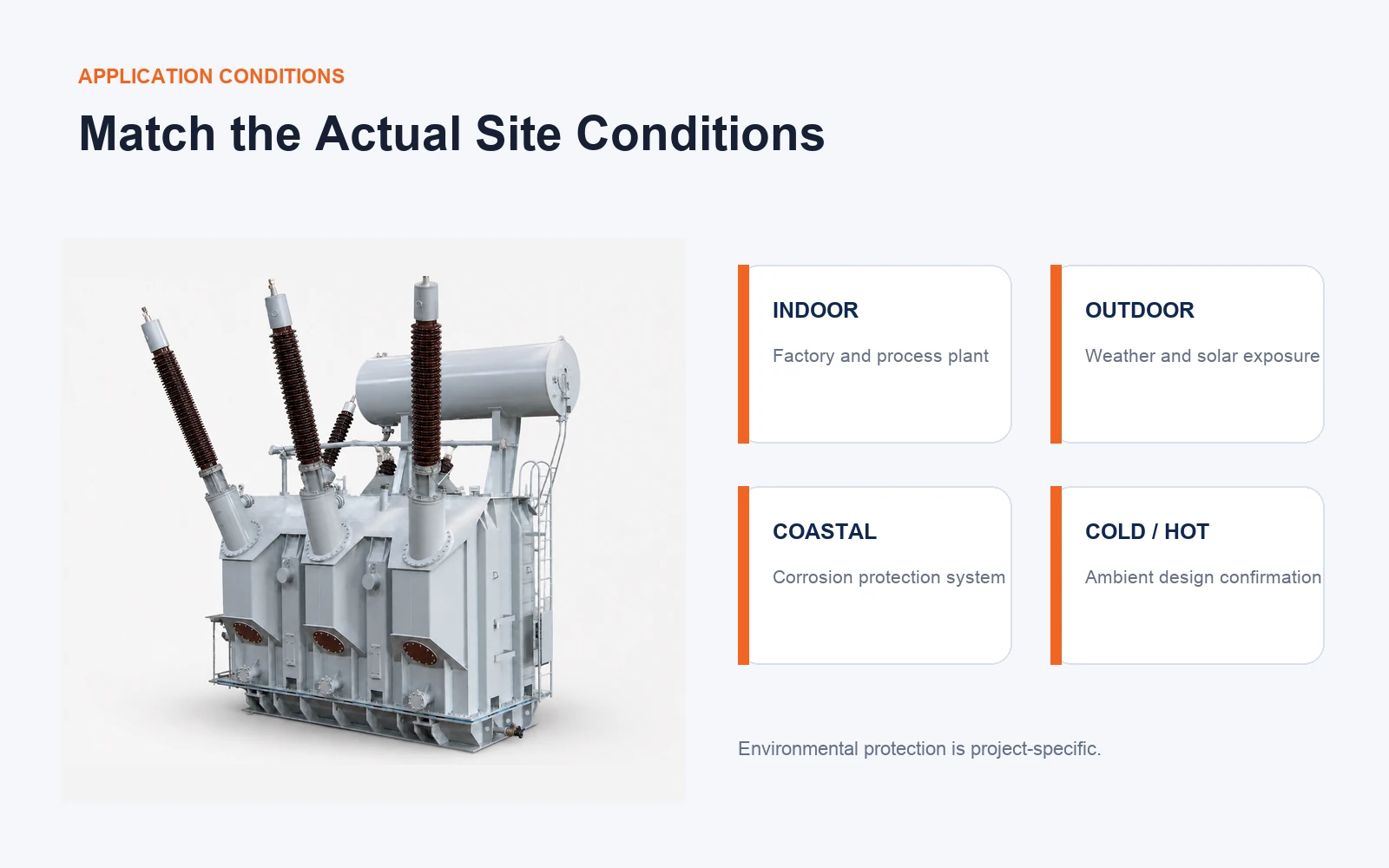

New and replacement units can be coordinated with the existing foundation, terminal direction, cooling arrangement, transport limits and site cabling.

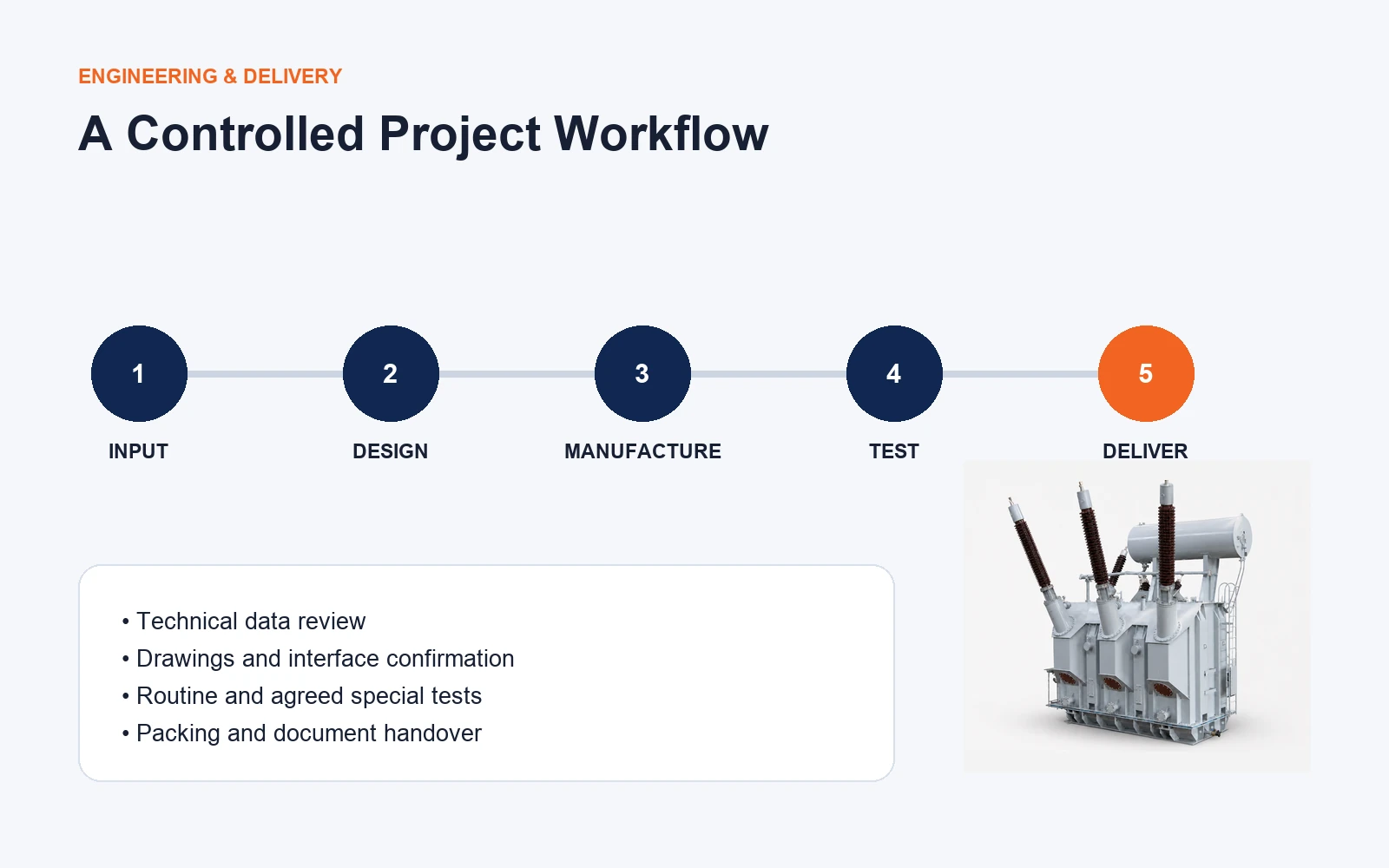

Final configuration is confirmed against the electrical duty, installation interfaces, site environment and project documentation.

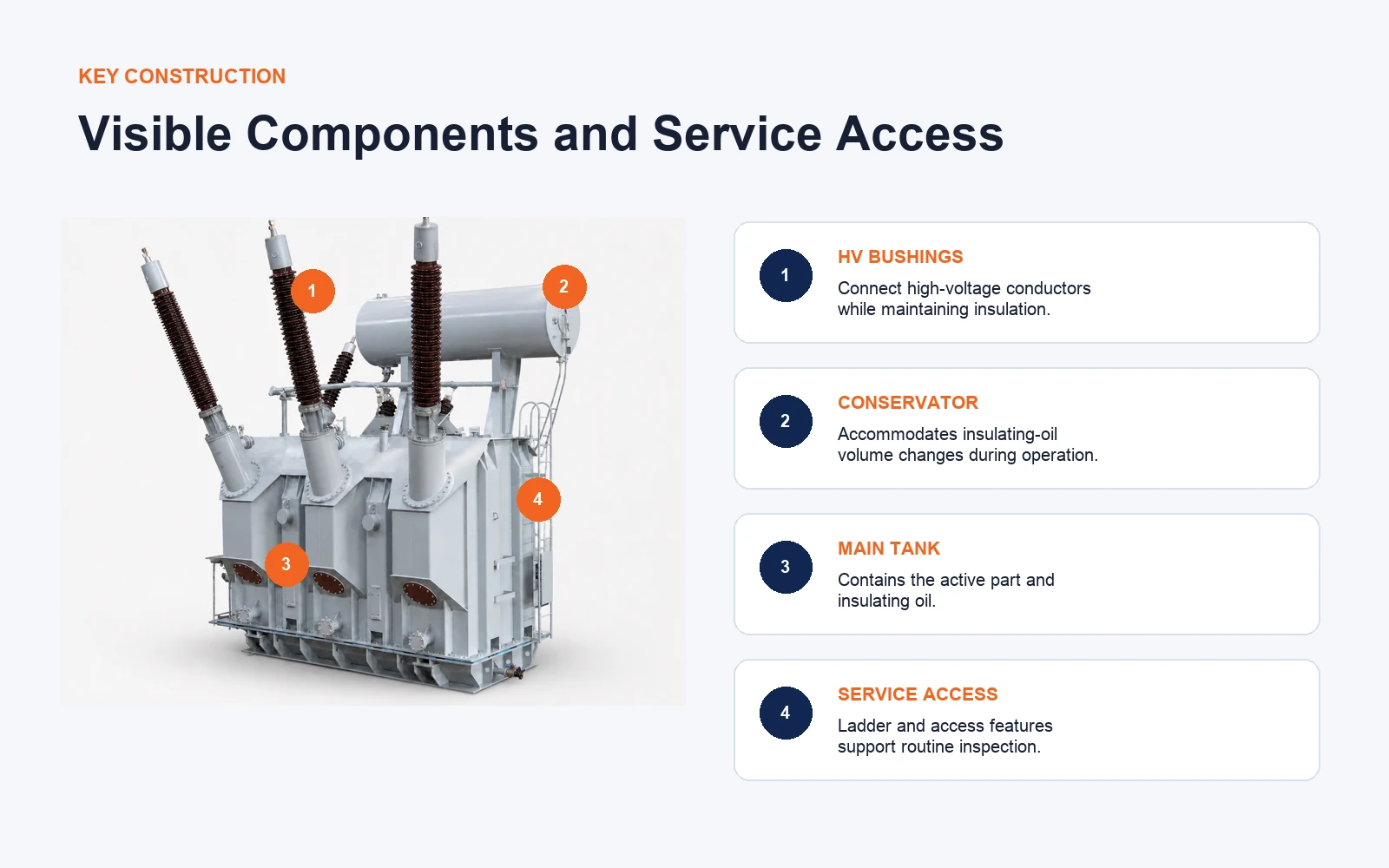

Industrial Power Transformer engineering views
Configure Industrial Power Transformer
Available information does not need to be complete. Start with a nameplate, drawing or required electrical ratings, and the remaining project inputs can be identified during review.
